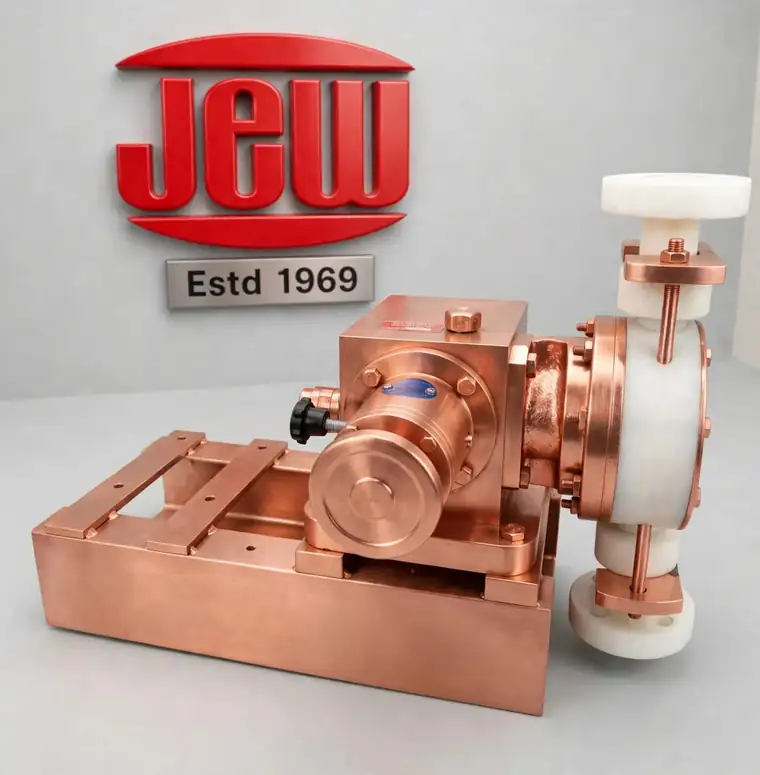

Diaphragm Metering Pump โ€“ 1000 LPH, PP (Polypropylene)

₹0.00

  • Capacity: up to 1000 LPH
  • Liquid end: PP (polypropylene)
  • Diaphragm type, no plunger contact with chemical
  • Stroke length adjustable by hand knob

Price on request. Send your chemical, flow and discharge pressure for a quotation.

Enquire on WhatsApp   or call +91 98191 49521

SKU: JEW-DMP-1000-PP Category:

Description

Zero Gland Leakage: Glandless mechanically/hydraulically actuated diaphragm metering pump. Hermetically isolates dangerous, corrosive, or fuming chemical media from the mechanical drive, ensuring 100% leak-free plant safety.

Technical Specifications

ParameterEngineering Specification
Pump DesignGlandless Diaphragm Positive Displacement Metering Pump
Rated Capacity Range0 to 1000 LPH (Micrometer stroke knob 0 – 100%)
Max Operating PressureUp to 10 kg/cmยฒ (Mechanical Diaphragm) / Up to 100 bar (Hydraulic Diaphragm)
Dosing Accuracy±1% (conforming to API 675 standards)
Liquid End MetallurgyVirgin Polypropylene (PP) / PVDF / PTFE / SS 316
Diaphragm ConstructionPTFE-Faced Solid Elastomer / Composite Multi-layer PTFE
Check Valve AssembliesAlumina Ceramic / Glass / PTFE Balls with PVDF / PP Seats
Drive Motor0.5 HP to 2.0 HP, 415V 3-Phase 50Hz, TEFC / Flameproof Ex-d

Ideal Chemical Media

Sodium Hypochlorite (NaOCl): 10% – 15% Commercial bleach dosing without off-gassing lock
Hydrochloric Acid (HCl): 30% – 35% Technical grade acid pickling & regeneration
Coagulants & Flocculants: Alum, Poly-Aluminium Chloride (PAC), Ferric Chloride
Caustic & Alkalis: Lime slurry, caustic soda solutions for neutralization in ETP/STP

Request Technical Datasheet & Fast Quote
We supply chemical metering pumps with ±1% accuracy, API 675 compliance, Mill Test Certificates (MTC 3.1) & Hydrostatic Test Logs. Worldwide export packaging available from JNPT Mumbai.
๐Ÿ’ฌ WhatsApp Instant RFQ: +91 98191 49521
Direct Call: +91 98191 49521 | Email: hardik@jewpump.com

Frequently Asked Technical Questions

{“@context”: “https://schema.org”, “@type”: “FAQPage”, “mainEntity”: [{“@type”: “Question”, “name”: “Why choose a diaphragm metering pump over a plunger pump?”, “acceptedAnswer”: {“@type”: “Answer”, “text”: “Diaphragm pumps provide 100% zero gland leakage because a flexible PTFE diaphragm hermetically seals the liquid end from the drive mechanism. They are mandatory for fuming, toxic, or hazardous acids like hydrochloric acid and sodium hypochlorite.”}}, {“@type”: “Question”, “name”: “What pressure ratings do JEW diaphragm pumps handle?”, “acceptedAnswer”: {“@type”: “Answer”, “text”: “Our mechanically actuated diaphragm pumps handle pressures up to 10 kg/cmu00b2 (bar), while our hydraulic diaphragm metering pumps handle severe high pressures up to 100 bar with integrated rupture detection.”}}, {“@type”: “Question”, “name”: “How do I avoid vapor locking when dosing sodium hypochlorite?”, “acceptedAnswer”: {“@type”: “Answer”, “text”: “JEW diaphragm pumps for hypochlorite dosing can be ordered with automatic degassing heads that purge off-gassing chlorine vapors without losing pump prime.”}}]}

Q: Why choose a diaphragm metering pump over a plunger pump?
Diaphragm pumps provide 100% zero gland leakage because a flexible PTFE diaphragm hermetically seals the liquid end from the drive mechanism. They are mandatory for fuming, toxic, or hazardous acids like hydrochloric acid and sodium hypochlorite.

Q: What pressure ratings do JEW diaphragm pumps handle?
Our mechanically actuated diaphragm pumps handle pressures up to 10 kg/cmยฒ (bar), while our hydraulic diaphragm metering pumps handle severe high pressures up to 100 bar with integrated rupture detection.

Q: How do I avoid vapor locking when dosing sodium hypochlorite?
JEW diaphragm pumps for hypochlorite dosing can be ordered with automatic degassing heads that purge off-gassing chlorine vapors without losing pump prime.
